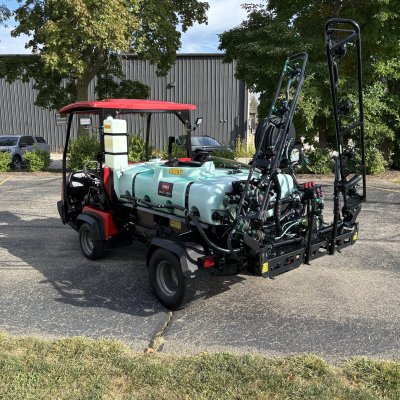

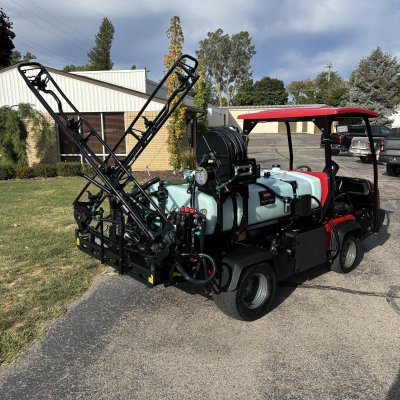

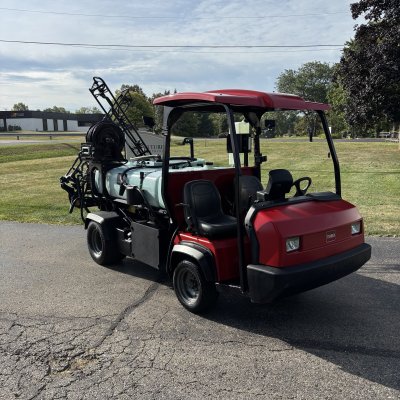

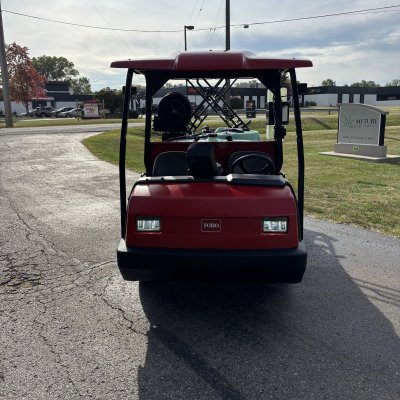

2020 Toro MultiPro Workman HDX – 200 Gallon Sprayer

The Multi Pro WM advanced spray system for Toro’s Workman® HD Series of utility vehicles leverages the advanced spray system capability of Toro’s Multi Pro 5800, 300-gallon sprayer, and combines this spray system functionality with cutting-edge and intuitive sprayer controls to create the most advanced, efficient and accurate 200-gallon bed-mounted sprayer accessory for a utility vehicle on the market. Aggressive agitation, faster response times, consistent and accurate application rates, intuitive rate set up, this sprayer has it all. *4-Post ROPS Included.

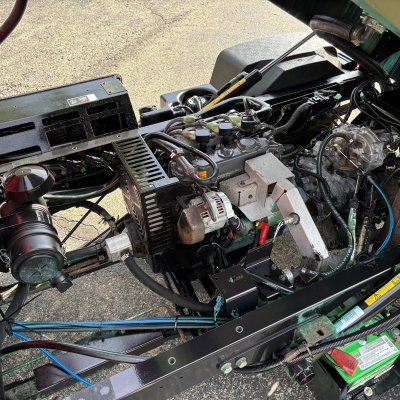

• Engine – Kubota® 972 EFI, 32.5 hp (24.2 kW), 962 cc, gasoline, liquid-cooled engine.
• Total Capacity for the HDX: 3,249 lbs. (1,473 kg)
• Six Diaphragm Pump – An Industry Exclusive – this oversized pump satisfies the highest spray rates while simultaneously supplying generous agitation flow.
• Spray Tank – 200 gal (757 L) Elliptical Chemical Tank– Thoughtfully redesigned polyethylene tank has no shelves or corners for chemical to stick on, which helps ensure a 99% spray out of chemical.
• Quick Find™ Console – The Quick Find™ Console helps the operator intuitively locate boom and actuator switches with the palm of their hand and places command of all key vehicle and sprayer systems at the operator’s fingertips for ease-of-use and improved control. The Info Center display and the analog pressure gauge, which are convieniently located just above the boom section and actuator switches, keeps all key sprayer operation data in the operator’s line of sight.
• Rugged Triangular Spray Boom – Standard three section, 18.5’ (5.6 m) boom width provides fore and aft breakaway on impact while protecting nozzles. Raises into a crisscross position for storage and transportation.
• OPTIONS INCLUDE:
  • Electric Hose Reel Kit – 150′ (45.7 m) of hose for hand or walk spraying applications. Convenient electric powered rewind. Spray gun has an adjustable nozzle from stream to fan for stationary spraying.
  • 20 Gallon Fresh Water Rinse Kit – Nesting inconspicuously in front of the main tank, this system includes a separate electric pump, plumbing and dual rinse nozzles. At 6.7 gallons per cycle, it has on-board capacity to complete a triple rinse process.
  • Canopy with Spray Boom LED Lights
  • Boom-Less Wide Area Nozzle
• Heavy Duty hydraulic Boom lift actuators with nitro-steel plated shafts; 1-3/4” Bore x 10.06” Stroke.

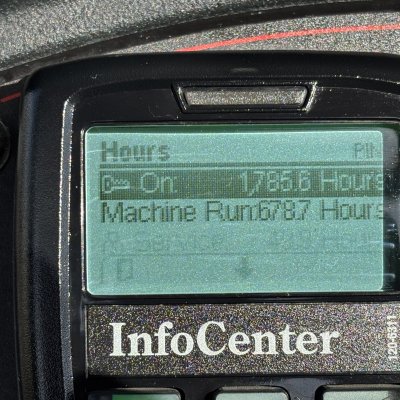

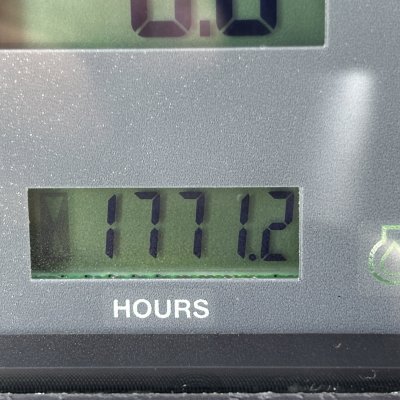

• HOURS:
  • 1785 – Key On Hours
  • 678 – Pump Run Hours
