Agri Metal 772

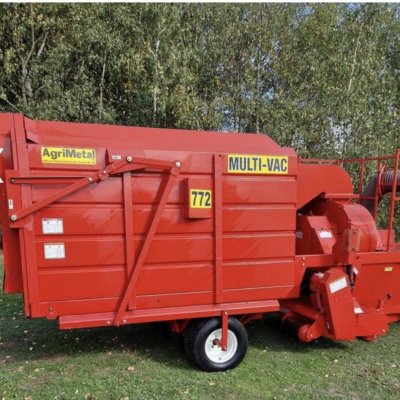

Agri metal Sweeper Vac Multi-Vac 772

USED ON A GOLF COURSE FOR PICKING UP LEAVES AND GRASS CLIPPINGS.

I CAN SEND MORE PICS AND VIDEOS IF NEEDED

• Quiet operating level for the operator and surrounding neighbors.
• Eliminate noise pollution

To prevent the operator from having to stop and unclog the pick-up head

• It allows a much longer time between trips to the dump site
• Increases productivity

The pick-up head lowers and rises hydraulically from the operator’s seat. As the operator lifts the pick-up head, the front raises first which allows to vacuum thick piles of leaves. The pickup head rides on 4 large rollers to eliminate marking, compacting and scuffing fairways.

Agri Metal has developed a new brush system that is second to none in sweeping leaves and branches. The brush is made of 3/8’’ wide high-strength nylon fingers with shorter steel knives located between the nylon fingers. The nylon fingers and steel knives are made to freely pivot so as not to damage the turf, while throwing leaves and branches into the intake.

The front roller height adjustment is easily done without the need of tools.

Low ground pressure
2 sets of wheels, mounted on walking beam axles to ensure low ground pressure and eliminate scuffing in tight turns.

Optional suction hose
An optional 16 foot commercial suction hose is available on all models.

Exhaust system
The exhaust of the Multi-Vac series expel the vicious air at the bottom of the rear door, directing the dust straight to the ground.

Hydraulic dump
A hydraulic dump system is used to empty the debris from the hopper. The hopper tilts up to a 60 degree angle to completely empty the box. This system is quick and efficient allowing the operator to return to the field, thus maximizing productivity.

Cleaning platform
A platform located around the blower housing enable the operator to safely & properly clean out the inside of the blower. A drain trap is located at the bottom of the blower to drain water and residues. Once the hopper is tilted, it is quick and easy to wash out the inside.
